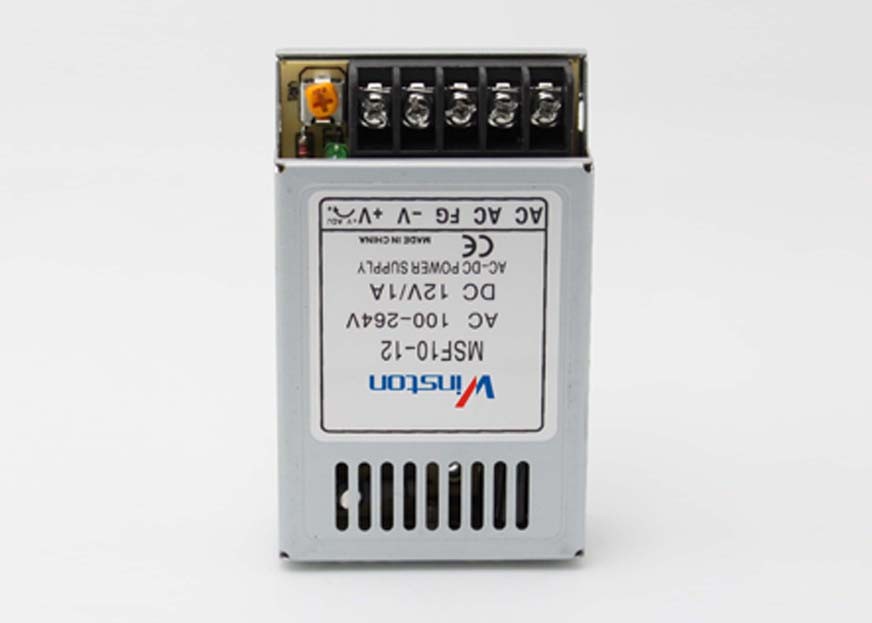

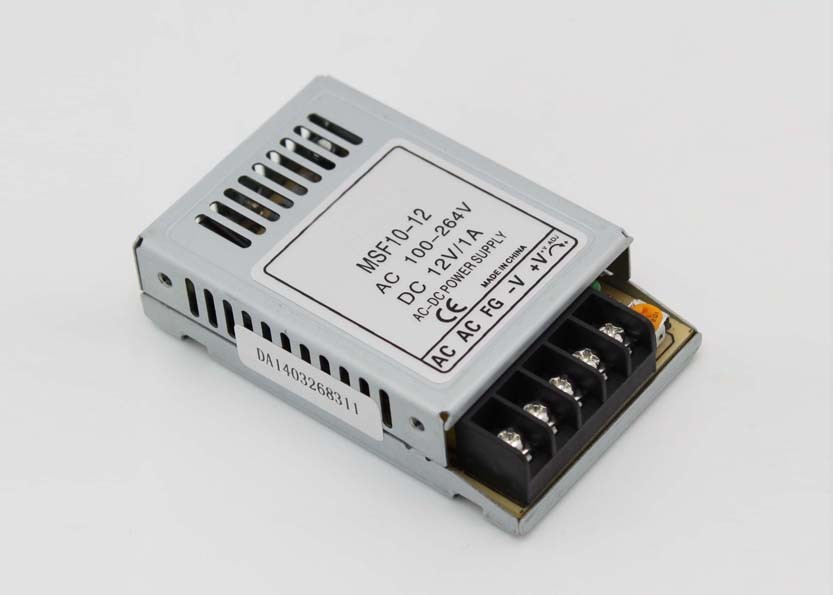

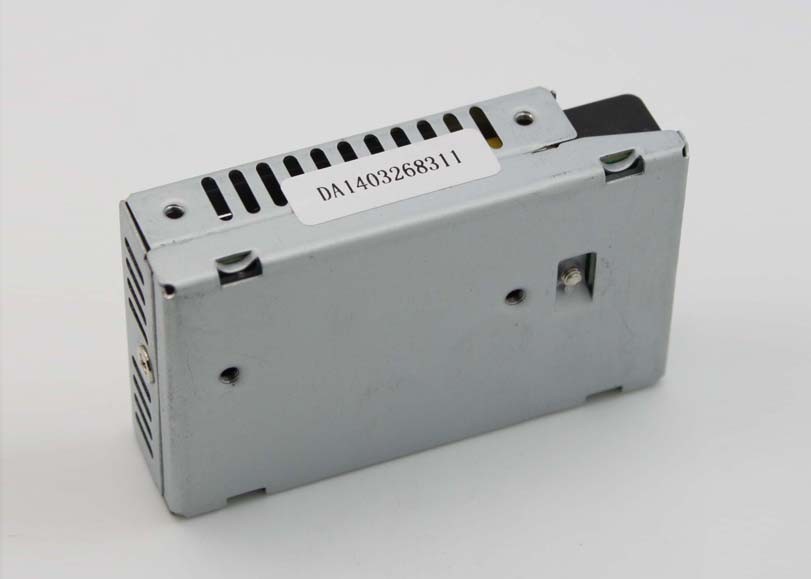

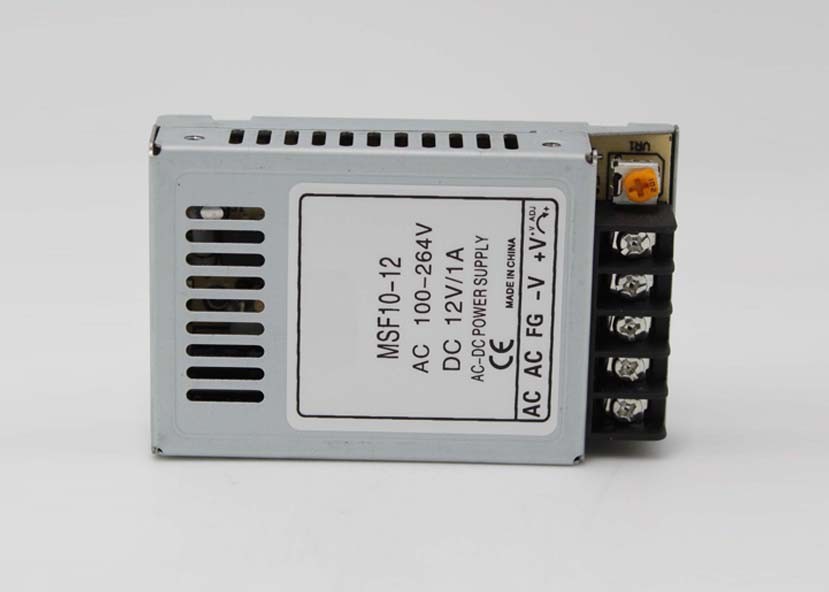

MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC

  • MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
  • MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
  • MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
  • MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
Lugar de origen China, Zhejiang
Nombre de la marca Winston/OEM
Certificación CE,ROSH
Número de modelo MSF - 10W
Cantidad de orden mínima 1PCS
Precio USD3.96
Detalles de empaquetado Caja estándar del cartón de la exportación
Tiempo de entrega 3-15days consiguen después el pago.
Condiciones de pago T/T, L/C, Paypal, pago en línea, RMB/USD
Capacidad de la fuente 10000PCS/Month
Datos del producto
Garantía 2 años OEM Sí
ODM Sí Dimensiones 78*48*21m m
Condición Original Nueva Peso 0.15kg
Única salida poder 10w TEMPERATURA DE TRABAJO -10℃~+50℃
Deja un mensaje
Descripción de producto

MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC


Summary

  • Single output: power 10w
  • Input voltage: 85-264VAC 120-370VDC



Technique parameter:


     Model MSF-10-5 MSF-10-12 MSF-10-15 MSF-10-24
DC output voltage current 5V 0-2A 12V 0-1A 15V 0-0.8A 24V 0-0.5A
Wave and noise 50mVp-p 50mVp-p 50mVp-p 50mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 68% 71% 72% 75%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 85-264VAC 120-370VDC 47-63Hz
Inpact current Cold start current 30A/230VAC
Overload proctection 105%-135% cut off the output, automatic recovery
Over-voltage protection
Setup rise hold up time 200ms, 50ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Packing 24.5*17.5*26.5cm/100PCS/15kg


Product Picture

MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC 0

Dimensions

MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC 1


The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

The use of power supply

1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

About us



MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC 2





PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
